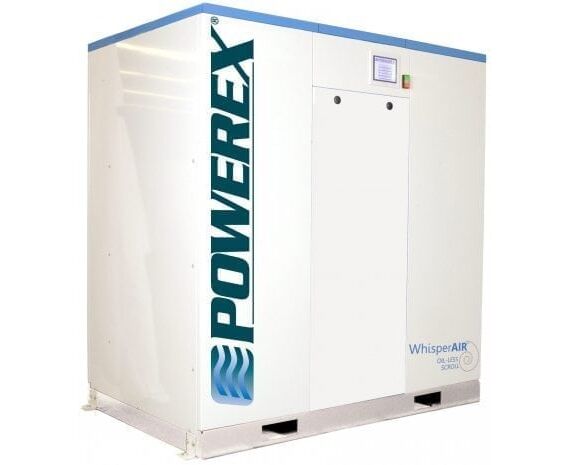

Powerex 45 HP Air Compressor Oilless Scroll 138.6 CFM, 208-230/460 Volt, 3-Phase SEH45B7

Free shipping
SEH45B7
$64,729.93
IN STOCK.
+
Free Shipping
Factory Location: , MA
Compressor World
Pembroke, Massachusetts
4.00
(1) Review Visit Seller Store >
Expert Review |
Our experts can help

WhisperAIR™ Sound Enclosure Cabinet

Powerex’s trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Oil-less Scroll Pump Technology

Our innovative scroll technology is completely oil-less, extremely quiet, and energy efficient. The scroll pump has few moving parts, making it reliable and easier to maintain. The self lubricating tip seals and absence of a gearbox means the pump is truly 100% oil free. As the leaders in scroll pump technology, our latest design incorporates several innovative features:

  • Main bearings are housed in durable cast iron instead of aluminum which prevents fretting and premature failure of the bearing race. This pump can be operated at 100% duty with confidence.
  • The patented bearing re-grease feature has been improved to allow maintenance from the front side of the pump, cutting service time in half.
  • The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor.
  • The improved efficiency and cooling results in lower operating temperatures.
  • Extremely low vibration.
  • Industry first 10hp scroll pump improves system efficiency by producing more output using fewer pumps.

Energy Efficiency

With the Powerex Variable Pump Drive system, each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for – or every 10 minutes, whichever comes first – which maintains equal run hours and extends maintenance intervals.
Redundancy is built into our system with our multiple pump design, eliminating the need to purchase an additional compressor.

System Features

10-60 HP MULTIPLEX MODELS
  • 10-20 HP systems are UL/CSA certified
  • Inlet filtration with replaceable element
  • Front mounted control panel includes:
    • On/Off switch
    • Power on light
    • High temperature shutdown with indication on the display
    • Run time hourmeter for each pump
    • Maintenance counter with alarm warning display
    • System pressure display
    • Full voltage starter with overload protection
    • General compressor fault with remote contacts
  • Internal vibration isolators
  • Air-cooled aftercooler for each compressor
  • TEFC Motor
  • 40-60hp systems have two isolatable compressor banks to allow for ease of maintenance and service
    • Mechanically isolated with the use of ball valves
    • Electrically isolated with motor protector disconnect and circuit breakers
    • OSHA-approved service on half capacity while other half is running
  • Additional Features
    • After Cooler:
      Included
      Magnetic Starter:
      Included with Alternation
  • Connection
    • Connection NPT:
      1-1/2"
  • Dimensions And Weight
    • Dimensions (L)(W)(H):
      73" x 47" x 62"
  • Overview And Technical Details
    • BTU/HR:
      114,601
      Sound Level dBA:
      66 dB(A)
  • Power Requirements
    • 208/3/60:
      Standard
      230/240/3/60:
      Standard
      460/480/3/60:
      Standard
      Standard Voltages:
      208-230/460/3/60
  • Product Specification
    • Capacity (CFM) @ 100 PSI:
      139 SCFM @ 100 PSI
      Compressor Style:
      Oilless Scroll
      Controls:
      Start/Stop with Alternation
      Cooling Type:
      Air
      Horsepower (HP):
      45 HP (6, 7.5 HP Modules)
      Max Pressure (PSI):
      116 PSI
  • Warranty
    • Standard Warranty:
      Factory Warranty

Oilless Scroll - Brochure.pdf (Oilless_Scroll_-_Brochure_2.pdf, 1,641 Kb) [Download]

Specification | SEQ-SEP-SEH 40-60.pdf (Specification_SEQ-SEP-SEH_40-60_2.pdf, 279 Kb) [Download]
